太陽系外惑星の大気(ジェームズ・ウエッブ宇宙望遠鏡3) (No. 739)
date 2022 09 21 --------------------------- 最強の天体望遠鏡の地位を誇るものといえば、 それはジェームズ・ウェッブ宇宙望遠鏡でしょう。 これまでに少しづつその観測装置と結果を紹介してきましたが、 今回は３つ目、近赤外スリットレス分光装置(NISS, Near-Infrared Slitless Spectrograph)です。 と言われても何のことやら、わからないと思いますので、 まずは、このNISSという観測装置で調べた結果を紹介します。 それは「ほうおう座」にあるWASP-96という星の周りを回っている惑星の観測です。 WASP-96は太陽と似た感じの星ですが、 その周りを回る惑星の方はちょっと変わっていて、 木星より大きいのに木星より軽くて、つまり、ふわふわした惑星です。 公転半径は地球・太陽間の20分の1ほどです。 ということは、太陽系で言うと水星軌道よりずっと近い位置で回っています。 公転周期はたった3日ほどです。 図1のように、 惑星が星を横切るように運動するため、 ミニ日食のように星の明るさが暗くなるのでこの惑星の存在がわかります。 ここからが重要です。 惑星が光を遮る時、光の波長によって遮る効果が変わるのです。 ふわふわした惑星の中に水があると水がよく吸収する波長では惑星による遮る効果が高くなります。 どの波長で星の光が遮られるかを見ていると、 惑星の大気の中にどんな分子があるかがわかります。 冒頭に紹介した近赤外スリットレス分光装置(NISS)を通して惑星が横切る様子を見ていればこのことを観測できます。 例えば、水のよく吸収する波長(複数ある)で星の光が大きく遮られれば、 「おっ、この惑星大気には水があるな」と気がつくわけです。 図2は実際に水のあることを示すジェームズ・ウェッブ宇宙望遠鏡のNISSのデータです。

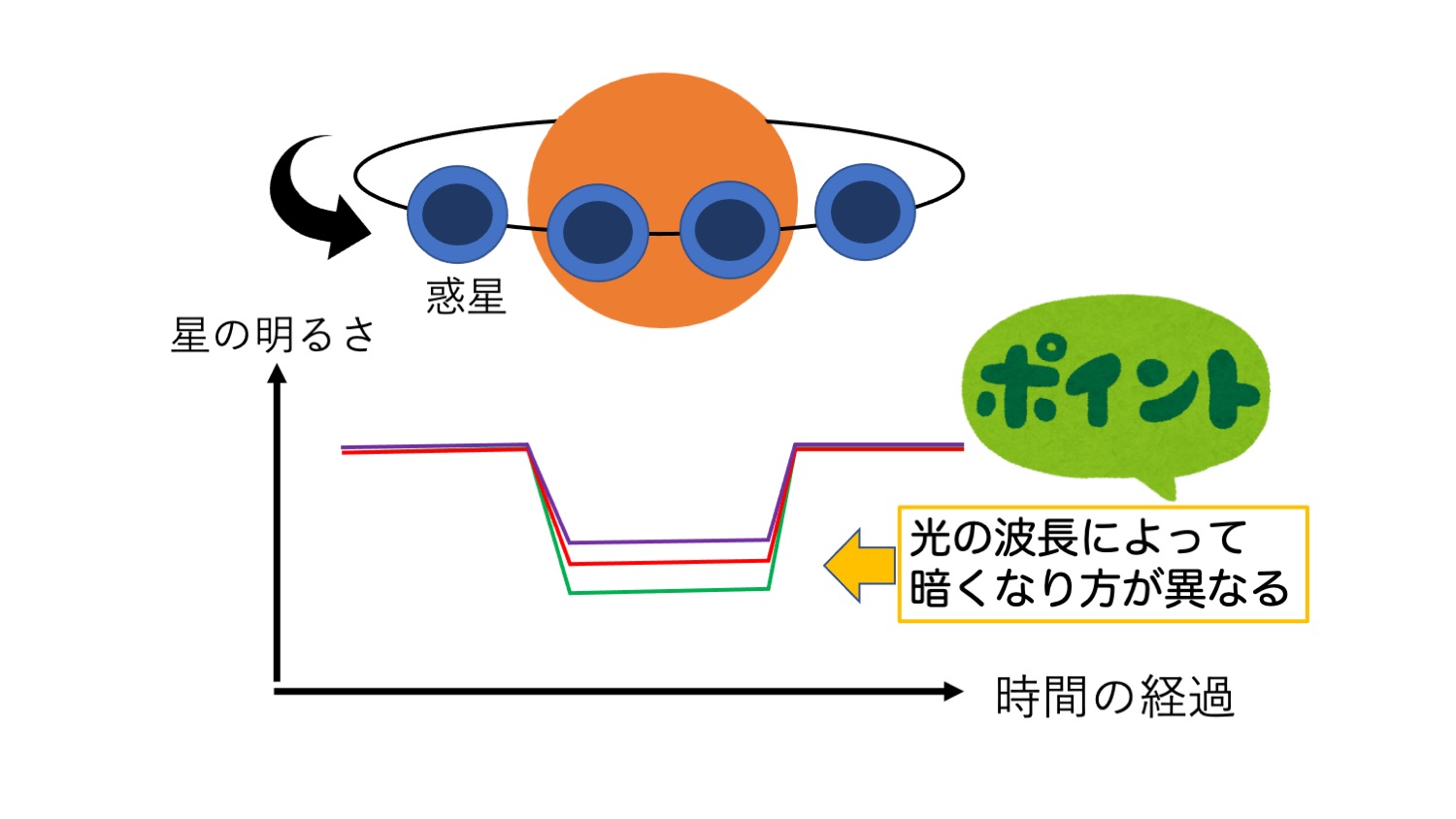

図1 惑星が起こす「食」よる惑星大気の分析の原理 http://www.shibatashinpei.jp/lib/yamashin/739-fig1.jpg

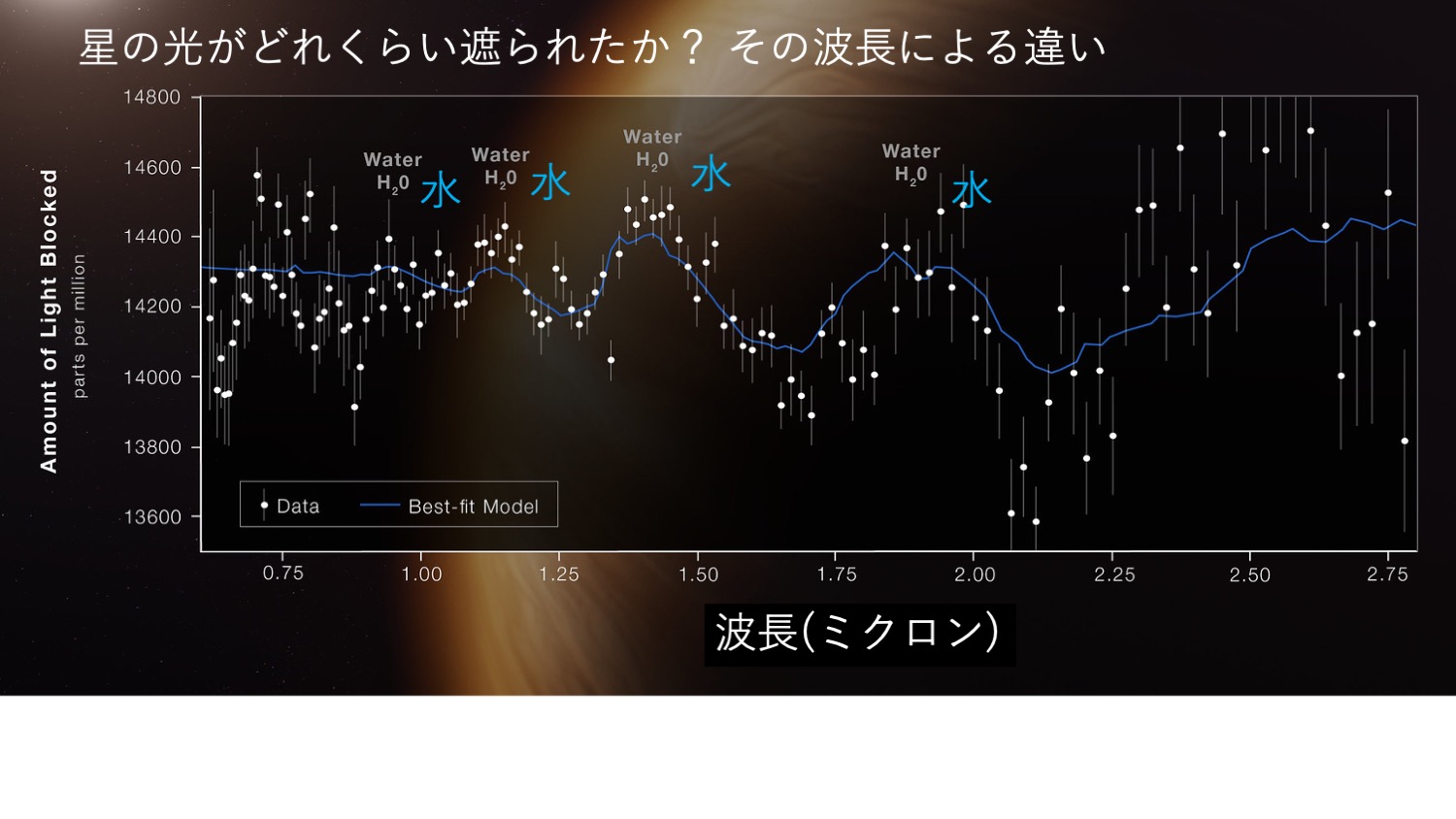

図2 WASP-96の惑星に水があることを示すデータ(提供：NASA, STScI). http://www.shibatashinpei.jp/lib/yamashin/739-fig2.jpg
本文終わり
パワポ http://www.shibatashinpei.jp/lib/yamashin/739-fig.pptx What are the capabilities of NIRISS? The Near-Infrared Imager and Slitless Spectrograph provides three unique scientific capabilities over a field of view of 2.2 by 2.2 arcmin2. It conducts R ~ 150 slitless spectroscopy at 0.8 to 2.25 microns optimized for Lyman alpha emission-line galaxy surveys. It conducts defocused R ~ 700 slitless spectroscopy at 0.7 to 2.5 microns optimized for exoplanet transit spectroscopy of bright host stars. It uses a 7-aperture non-redundant mask to provide sparse-aperture interferometric imaging at 3.8, 4.3 and 4.8 microns, optimized for studying exoplanets. The NIRISS dectector is a single 2048 by 2048 pixel detector array with 65 milliarcsec pixels. NIRISS R ~ 150 slitless spectroscopy will reach 5.5 x 10-18 ergs s-1cm-2 line sensitivity at 1.4 microns, 10 sigma in 10,000 seconds.
